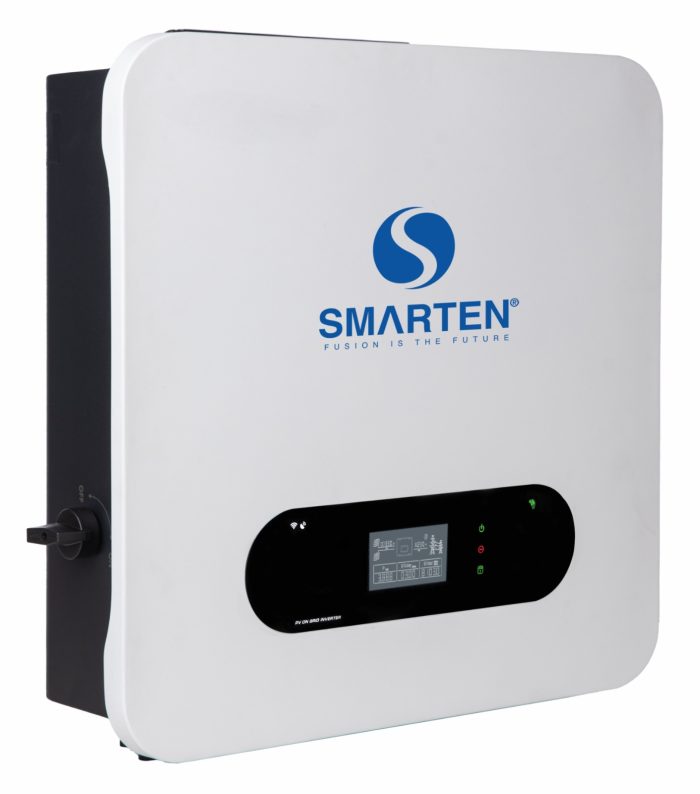

On Grid Solar Inverter

Smarten proudly presents its On-Grid Solar Inverter, a high-performance solution designed to maximize solar energy efficiency for homes and businesses. Equipped with advanced MPPT technology and seamless grid connectivity, this inverter ensures optimal power conversion while significantly reducing electricity bills.

Our 3kW single-phase on-grid inverter integrates smoothly with the grid, allowing excess energy export, lowering energy costs, and promoting a greener environment. With intelligent monitoring, users can track power generation and consumption in real time via a mobile app.

Built for durability, efficiency, and safety, smarten on-grid inverter is the perfect choice for those embracing sustainable energy. Whether for residential or commercial use, it guarantees reliability, performance, and maximum solar utilization.

Star Series

Specifications

Available Range: 1KW – 6KW

Features:

Maximum DC Power: 4500W, providing high power output for solar energy generation.
Maximum DC Voltage: 550V, ensuring optimal voltage handling.
Minimum System Start/Shut Down Voltage: Operates efficiently with a start voltage of 75V and shut down at 100V.
MPPT Voltage Range: Wide range of 100V – 500V for efficient energy tracking.
Maximum Input Current: 18A, supporting high input power.
Maximum Input Short Circuit Current per MPPT: 25A, ensuring system safety.
Number of MPPT Trackers: Equipped with 1 MPPT tracker for enhanced performance.
Strings per MPPT Tracker: Supports 1 string per MPPT tracker for optimized energy conversion.
Nominal Output Power: 3000W, suitable for household and commercial applications.
Maximum Output Power: Can reach up to 3300W for peak efficiency.
AC Grid Frequency / Range: Auto-selection between 50Hz and 60Hz, with frequency ranges of 44Hz – 55Hz and 54Hz – 65Hz.
Maximum Output Current: 16A, ensuring stable power supply.
AC Connection (with PE): Single-phase connection for residential and small commercial setups.
Power Factor: >0.99, adjustable from 0.8 leading to 0.8 lagging for improved efficiency.
Maximum Conversion Efficiency: 97.5%, minimizing energy losses.
European Efficiency: 97.2%, ensuring high-performance operation.
MPPT Efficiency: 99.9%, maximizing solar power utilization.
Grid Monitoring / Ground Fault Monitoring: Ensures system security and operational efficiency.
Display: Graphic LCD for real-time monitoring and user-friendly operation.
Communication Interface: Standard WiFi connectivity
